SHOTOVER F1 For Sale $225,000

Note: This SHOTOVER F1 does not have a camera or lens inside.

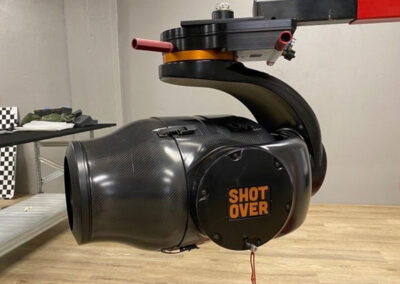

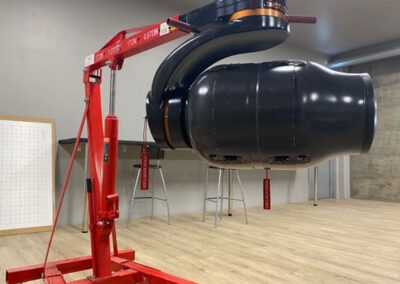

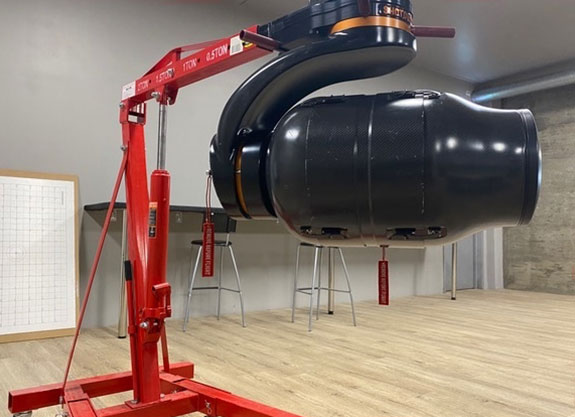

A 6-axis gyro stabilized camera mount that delivers unshakable stability with unmatched look down capability for use inverted, or right side up—on almost anything that moves. It rigs fast and accommodates hundreds of camera and lens combinations, for the look you want. Its compact carbon fiber construction means it is a light weight helicopter cinematography alternative that ships as excess baggage on commercial flights worldwide with no export restrictions.

Product Information

179 Runtime Hours

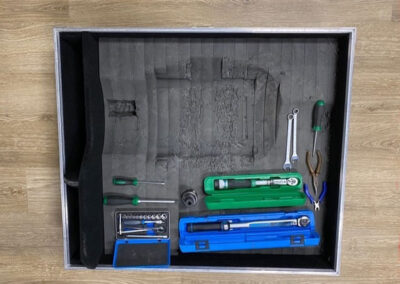

COMES WITH

  • Components to install RED cameras, ARRI Alexa Mini and
  • ARRI Alexa LF Mini
  • Windowless Operation attachment
  • Front window
  • Filter mounting assembly
  • Hede lenses motors

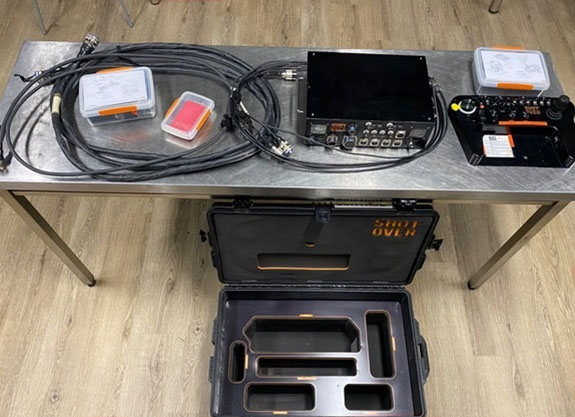

  • Laptop Operation control unit
  • Auxiliary junction unit
  • Complete external cable set

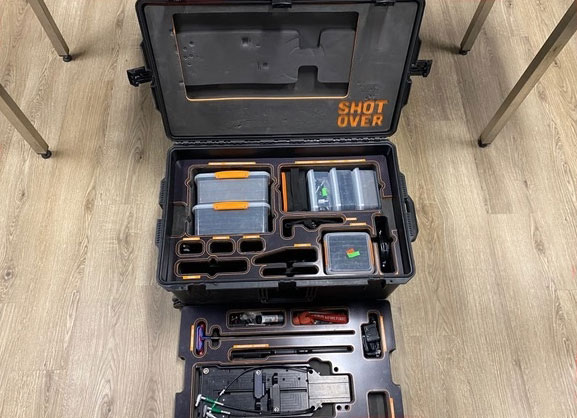

  • Standard shipping cases
  • UL certificate ground power supply
  • Cone Top plate Airfilm mount compatible
  • Laptop computer with gimbal software and manual

EXTRA’S THAT ARE INCLUDED

  • Remote controlled rotation polarizer assembly

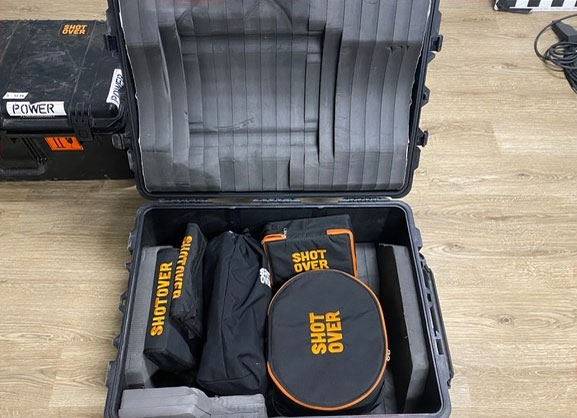

  • Excess baggage shipping cases
  • Force Joystick controller
  • Traveling stand system
  • Rain spinner assembly ( extra )
  • Wireless gimbals control interface
  • Mitchell mount assembly for use on cranes ( extra )
  • Multi pattern top plate ( low profile lid )

SHOTOVER F1 System Features

  • Quickly and easily interchange multiple cameras and lenses
  • Compact size and weight allows affordable transport as freight or excess baggage
  • No ITAR restrictions or EAR licensing requirements
  • Compatible with most FAA and EASA approved aircraft mounts
  • Various top plate options are available to easily allow mounting on various platforms- land, sea and air
  • Easily integrated onto a wide variety of mounting platforms
  • 6-axis gyro stabilized with look down capability
  • Windowless operation option for brilliant imagery without reflections
  • Fiber optic video data transfer for clean 3GHz imagery
  • State of the art electronics and design techniques deliver unshakable stability and ultimate functionality
  • Customizable graphics overlay for real time operator feedback
  • Auto or Steerable horizon with the most advanced steering capabilities on the market
  • Inverted operation using auto-position detectors
  • Remote controlled polarized filter rotation, rain deflector and other accessories available

In conjunction with system users, our engineers meticulously designed the SHOTOVER gimbal controller. It provides the highest level of functionality with ideal placement of controls.

Features of the Gimbal Controller include:

  • Force Joystick Option
  • Iris Wheel control on the side and top of controller
  • Adjustable friction drag control for Iris Wheel and Focus Knob
  • White Mark-up Ring added to Focus Knob
  • Roll Rocker added, selectable control between Rocker and Joystick Twist
  • Wrist Support with quick disconnect
  • Common Camera Control Connector, with cables supplied for integration with Arri RCU-4, Sony RM-B750, Canon RC-V100
  • Break out FI+Z control with Preston HU3​
  • Dual 5V USB A Ports for powering Accessories (including smartphones)
  • Mount Holes on top & rear faces for accessories & monitor mounting

Product Specifications Stabilization

  • 6-axis with no gimbal lock
  • High performance non-ITAR sensors
  • Distributed Multi-processor closed loop servo control system
  • Proprietary gimbal control algorithms

GIMBAL FIELD OF VIEW

  • Pan: 360 degrees continuous (via electrical and optical rotary joints)
  • Tilt: +45 to -140 degrees
  • Roll: +/-85 degrees (steerable or auto horizon)
  • Max slew rate: 100 deg/sec

DATA / COMMUNICATION

  • Fiber Optic lines
  • CAN Bus
  • RS 422 Serial Bus
  • Ethernet

WEIGHT

  • Turret with max payload less than 59kg (130lbs)
  • Operator control unit 2.7kg (6lbs)
  • Junction control box 4kg (9lbs)
  • External cable set: 2.5kg (5.5lbs)
  • Fujinon 25-300 and Arri/Fujinon
  • Alura 45-250 lens cases 61kg (134lbs)

POWER

  • 19-32 VDC
  • 12 Amps Max Draw (at 28V)

ENVIRONMENTAL

  • Operating Temperature: -20 to +50 degrees C
